In high-performance composite manufacturing and electronics encapsulation, engineers constantly battle the trade-off between rapid production cycles and maintaining a workable pot life. You need fast throughput to scale operations, yet you also require sufficient time to mix, pour, and manipulate the resin before it hardens. Traditional aliphatic and aromatic amine curing agents often fail to provide the necessary latency at room temperature while delivering rapid, complete cross-linking at elevated temperatures. This results in either premature gelation on the shop floor or extended, energy-intensive curing cycles in the oven. As a highly active catalytic curing agent and accelerator, 2-ethyl-4-methylimidazole offers a specific kinetic profile that resolves this bottleneck. It remains dormant at room temperature but reacts aggressively when exposed to specific heat thresholds, allowing you to optimize both working time and oven throughput.
Temperature-Dependent Activation: 2-ethyl-4-methylimidazole exhibits excellent latency at room temperature but initiates rapid cross-linking when exposed to thermal triggers, typically between 80°C and 180°C.
Concentration Sensitivity: Small variations in weight percentage (typically 2% to 10% wt) drastically alter curing times and exothermic peaks, requiring precise formulation control.
Advanced Latency Options: Utilizing microencapsulated versions of the agent can further extend low-temperature stability without sacrificing high-temperature reactivity.
Dual Functionality: It can function as a sole curing agent for high-temperature applications or as a highly efficient accelerator for anhydride and dicyandiamide (DICY) systems.
Thermomechanical Trade-offs: While it significantly reduces curing time, improper dosing can lead to excessive exothermic heat, potentially compromising the structural integrity and glass transition temperature (Tg) of the final polymer matrix.
Table of Contents
2-Ethyl-4-Methylimidazole (2E4MZ) is an effective epoxy curing accelerator that promotes ring-opening reactions and polymer network formation. Unlike conventional amine hardeners, it can initiate anionic epoxy polymerization at relatively low concentrations, helping control curing speed, cross-link density, and final resin properties.
Explore MSN Chem's 2-Ethyl-4-Methylimidazole (CAS 931-36-2) for epoxy resin applications.

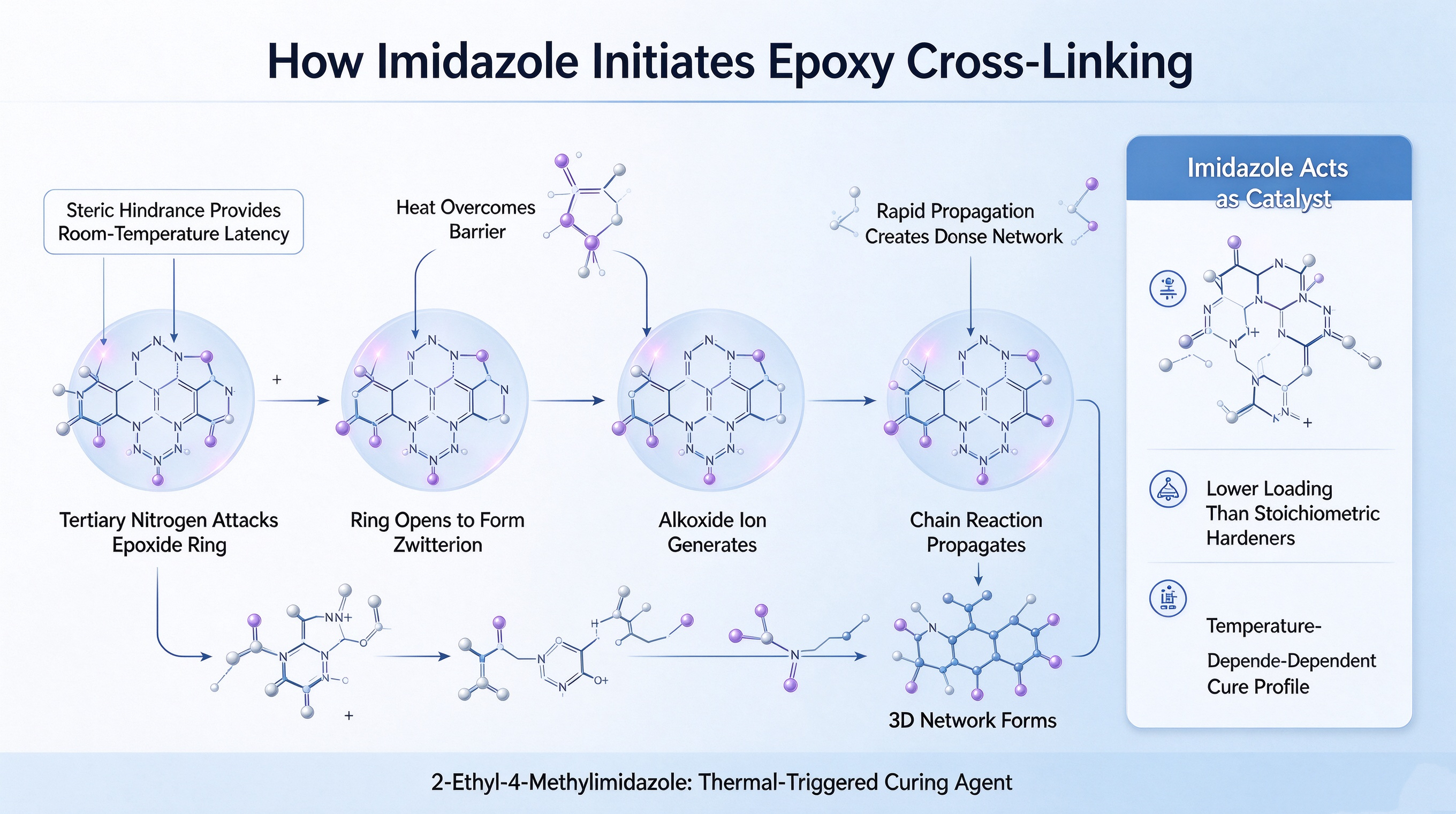

Imidazole-initiated epoxy curing begins when the nitrogen atom in the imidazole ring attacks an epoxy group, promoting ring opening and the formation of reactive intermediates. These intermediates trigger further epoxy reactions, gradually building a three-dimensional polymer network. Reaction speed and cross-linking depend on catalyst concentration, temperature, and epoxy formulation.
Reaction Stage | Main Process |
|---|---|
Initiation | Imidazole nitrogen attacks the epoxy group |
Ring Opening | Reactive zwitterionic and alkoxide intermediates form |
Propagation | Active species promote further epoxy ring-opening reactions |
Network Formation | Epoxy molecules form a cross-linked structure |
Reaction Completion | Curing slows as reactive groups and molecular mobility decrease |
This catalytic mechanism allows 2-Ethyl-4-Methylimidazole to promote epoxy curing without requiring the same stoichiometric proportions as conventional amine hardeners.
The specific chemical structure of the imidazole dictates its performance on the shop floor. The base imidazole ring contains carbon and nitrogen atoms. Adding different chemical groups to this ring changes how it behaves. The ethyl and methyl groups on the 2-ethyl-4-methylimidazole molecule play a structural role by creating steric hindrance.
Steric hindrance occurs when physical bulkiness prevents molecules from reacting easily. The ethyl group at the 2-position blocks the reactive nitrogen atom. At room temperature, this physical barrier prevents the nitrogen from attacking the epoxy rings. This gives the formulation its latency and long pot life. When you apply heat, the molecules vibrate faster. The thermal energy overcomes the steric hindrance, allowing the nitrogen to attack.
These alkyl groups also affect nucleophilicity. They push electron density toward the nitrogen atom. Once the thermal energy overcomes the physical barrier, this increased electron density makes the nitrogen highly reactive. It attacks the epoxy ring much faster than an unmodified molecule would.
Curing Agent Type | Steric Hindrance Level | Room Temperature Latency | High-Temperature Reactivity |
|---|---|---|---|
Unmodified Imidazole | Low | Poor (Short Pot Life) | Moderate |
1-Methylimidazole | Moderate | Fair (Medium Pot Life) | High |
2-Methylimidazole | High | Good | High |
2-Ethyl-4-Methylimidazole | Very High | Excellent (Long Pot Life) | Very High |
Comparing these derivatives shows clear operational differences. Unmodified imidazole reacts too quickly at room temperature, ruining batch consistency. 1-methylimidazole offers better control but still risks premature gelation in large batches. The dual substitution provides the optimal balance. You get maximum working time during layup and maximum speed in the oven.
Mapping the exact time-temperature relationship dictates your production throughput and energy consumption. You must balance the need for speed against the physical limits of your equipment and base materials.
Latent imidazole curing agents help maintain epoxy resin stability at room temperature while enabling heat-activated curing. Depending on their chemical structure and formulation, they can extend pot life and support processes such as resin transfer molding and composite manufacturing. Microencapsulation may further improve storage stability by separating the catalyst from the epoxy until activation.
Heat-activated epoxy curing agents become more reactive as temperature increases, accelerating cross-linking and resin hardening. Curing temperatures and holding times depend on catalyst chemistry, concentration, epoxy formulation, and component thickness. Proper temperature control helps achieve consistent curing and mechanical performance without excessive heat buildup.
Rapid epoxy curing can improve manufacturing efficiency in electronic encapsulation, coatings, and composite production. However, excessively fast curing may cause trapped air, internal stress, or incomplete cross-linking. Optimizing catalyst concentration, heating conditions, and resin formulation helps balance processing speed with finished product quality.
Imidazole catalyst loading influences epoxy reaction speed, working time, and heat generation. Selecting an appropriate concentration is essential for balancing production efficiency, process stability, and curing quality.
Epoxy curing agent dosage affects pot life, gel time, and reaction intensity. Lower catalyst concentrations generally support longer working times, while higher concentrations may accelerate curing but increase exothermic risks. The optimal dosage should be established through formulation testing and supplier recommendations.
Catalyst Loading | Typical Effect | Main Consideration |
|---|---|---|
Lower | Slower curing, potentially longer pot life | Longer processing time |
Moderate | Balanced curing speed | Suitable process control |
Higher | Faster curing and shorter working time | Greater heat management requirements |
Actual gel times and pot life vary by epoxy system, curing agent, and temperature.
Excessive imidazole catalyst concentration can accelerate epoxy curing and cause significant heat accumulation, particularly in thick castings. Poor temperature control may lead to internal stress, cracking, voids, or material degradation. Optimizing catalyst dosage and curing schedules helps improve processing safety and finished product consistency.
Epoxy curing performance should be evaluated through glass transition temperature, mechanical strength, impact resistance, and thermal stability. Optimizing the curing agent and formulation helps manufacturers achieve the required balance between processing efficiency and final material performance.
Imidazole-based epoxy curing agents can improve thermal resistance by promoting epoxy cross-linking. The final glass transition temperature (Tg) depends on curing agent structure, cross-link density, and curing conditions. Appropriate post-curing may further improve thermal performance by increasing the degree of cure.
Explore MSN Chem's 2-Ethyl-4-Methylimidazole (CAS 931-36-2) for epoxy curing and accelerator applications.
Imidazole-cured epoxy resins may exhibit brittleness when formulated for high cross-link density. Toughening agents, including core-shell rubber particles and elastomers, can improve impact resistance and crack resistance. Proper formulation design helps balance rigidity, thermal stability, and mechanical durability for demanding applications.
For further technical guidance, read MSN Chem's Imidazole Applications in Epoxy Resin Curing Agents.
Using 2-ethyl-4-methylimidazole allows manufacturers to achieve long room-temperature pot life combined with rapid, high-temperature curing. It bridges the gap between production speed and material workability. By understanding its catalytic mechanism and concentration limits, you can optimize your thermal profiles for maximum efficiency.
Conduct Differential Scanning Calorimetry (DSC) testing on lab-scale batches to map the exact thermal activation curve for your specific base resin.
Perform rheological testing to determine the precise working time and viscosity changes at your facility's ambient temperature.
Start with a conservative 2 wt% loading and incrementally increase the concentration while monitoring exothermic peak temperatures in test castings.
Implement strict humidity controls and nitrogen purging protocols in your storage and mixing areas to prevent moisture contamination.
A: The standard activation range sits between 80°C and 180°C. Specific curing times depend heavily on the exact temperature and concentration used. A typical industrial schedule requires 150°C for 4 hours. Higher loadings, such as 8.8 wt%, can achieve a full cure between 80°C and 180°C in exactly 60 minutes.
A: No, it cannot cure epoxy efficiently at room temperature. The chemical structure creates steric hindrance, which provides excellent latency. This latency gives the formulation a long pot life. It requires a specific thermal trigger, usually above 80°C, to break down physical barriers and initiate rapid cross-linking.
A: Concentration and pot life share an inverse relationship. Higher weight percentages drastically decrease the workable pot life. A higher density of catalyst molecules increases the probability of premature reactions, even at lower temperatures. It also accelerates the exothermic reaction, which can lead to thermal runaway in thick parts.
A: Yes, curing in seconds is possible at extreme temperatures between 100°C and 500°C. However, this requires highly specialized, solvent-free formulations. You must manage the rapid heat application perfectly to prevent thermal degradation, trapped volatiles, and severe micro-cracking within the polymer matrix.
A: Imidazole derivatives are highly hygroscopic. They absorb moisture from the air rapidly. This water interferes with the chemical reaction, altering predictable curing times. Furthermore, trapped moisture boils during high-temperature curing cycles. This creates steam bubbles, leading to severe foaming and a complete loss of structural integrity.
